Provide high quality product to the mask and container type desiccant industry.
We offer reasonable price to the manufacturer and minimize inconveniences of the clients through harmonious and streamlined supply.

DuPont™ Xavan®

Raw material100% polypropylene
Fabric structureContinuous filament
Fiber diameter40 ~ 60µm
Fabric colorWhite

Application

Filter and yellow dust mask support

Food contact certification EU No 10/20
USP Plastic Class Ⅳ and FDA

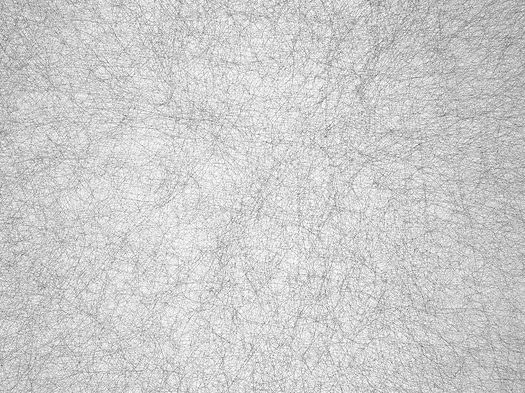

Picture of DuPont™XAVAN® aspect

Technical Data Sheet

Property	Standard	Unit	5131WF	5161WF	5201WF	5261WF	5401WF
Descriptive properties
Area Weight	EN ISO 9864	g/m²	45	55	68	90	136
Thickness under 2kN/m²	EN ISO 9863-1	mm	0.28	0.29	0.32	0.39	0.44
Hydraulic properties
Opening size 0_90w	EN ISO 12956	μm	230	225	225	175	120
Air Permeability 98 Pa	DIN 53887	m³/(m²·min)	180	140	110	85	37
Mechanical properties
Tensile strength MD / CMD	EN ISO 29073-3	N/5cm	120/90	150/130	160/130	200/250	370/350
Elongation MD / CMD	EN ISO 29073-3	%	30/30	30/30	30/30	30/35	40/40
Tear strength MD / CMD	ASTM D4533	N	110/110	130/130	170/170	190/230	380/335

* Note: MD = Machine Direction / CMD = Cross Direction.

(* Source : DuPont™ website)
